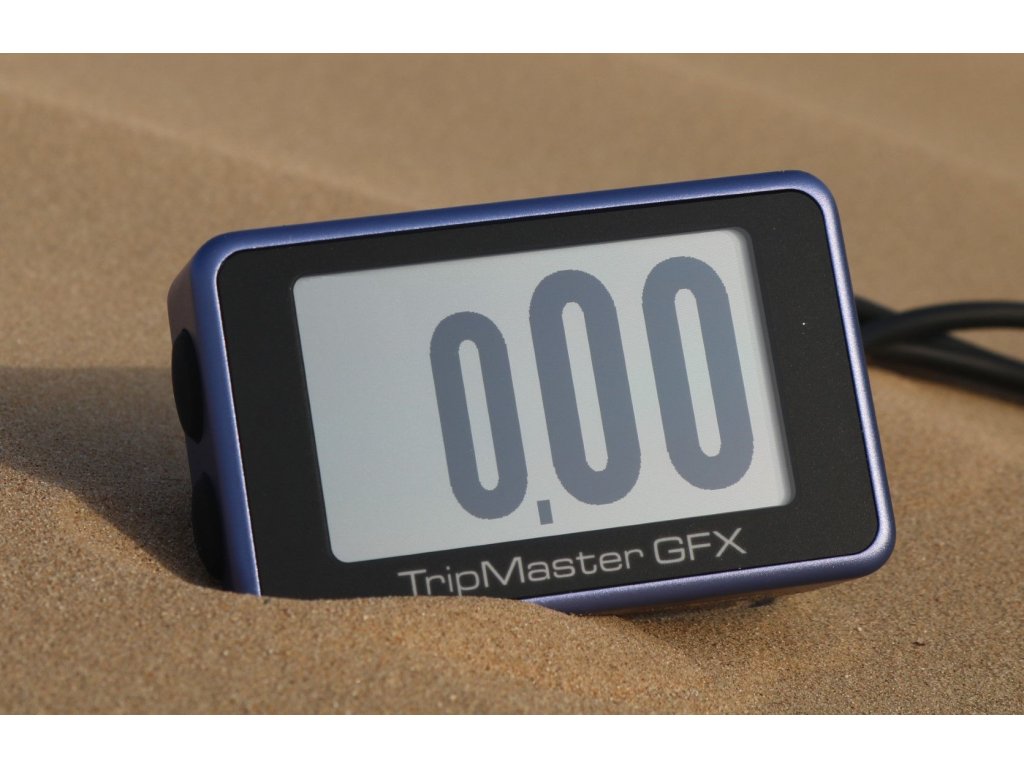

TripMaster GFX v2 Standard

NOTE: This is the wheel sensor ONLY model.

It is compliant for races, such as Dakar, that do not allow devices with any sort of GPS functionality!

Hardware:

• High contrast Transflective graphics LCD
• 2.7” diagonal
• 400x240 pixels, 172ppi
• LED backlight
• 180° viewing angle in X+Y axis
• Perfect readability under bright sunlight and dust
• CNC machined and anodised aluminium casing
• 2 click-feedback rubber buttons on the left side for easy pressing even when wearing gloves
• Matte framed lens to limit glare
• Internal Lithium-Polymer self-charging backup battery
• 3 colour-coded cables with M8 connectors
• Water- and dustproof design
• Smaller footprint than the traditional TripMaster XL4
• Plug and Play with old cables, accessories and mounting positions
• Wheel sensor ONLY

Software:

• Wheel size adjustable in millimetres
• Self-calibrating wheel size
• Numerous modes individually configurable
• 1x wheel trip viewable in 10m or 100m resolution
• 1x wheel speed display
• Statistics for maximum and average speeds
• Stage moving timers
• Combined screens for Trip and Speed together

• Intuitive settings menu accessible from any mode
• Transition pages with symbols and icons when switching between modes
• Lifetime and resettable oil odometers
• Invertible LCD image with dim backlight for pleasant reading in the dark
• Software updateable via USB

Included:

• Stainless-Steel Front wheel sensor (M8 screw type)
• Neodymium Magnet
• Power lead
• Mounting parts: grommets, spacers and nuts

Dimensions:

• 84mm x 52mm x 22mm (WxHxD)
• 250g
