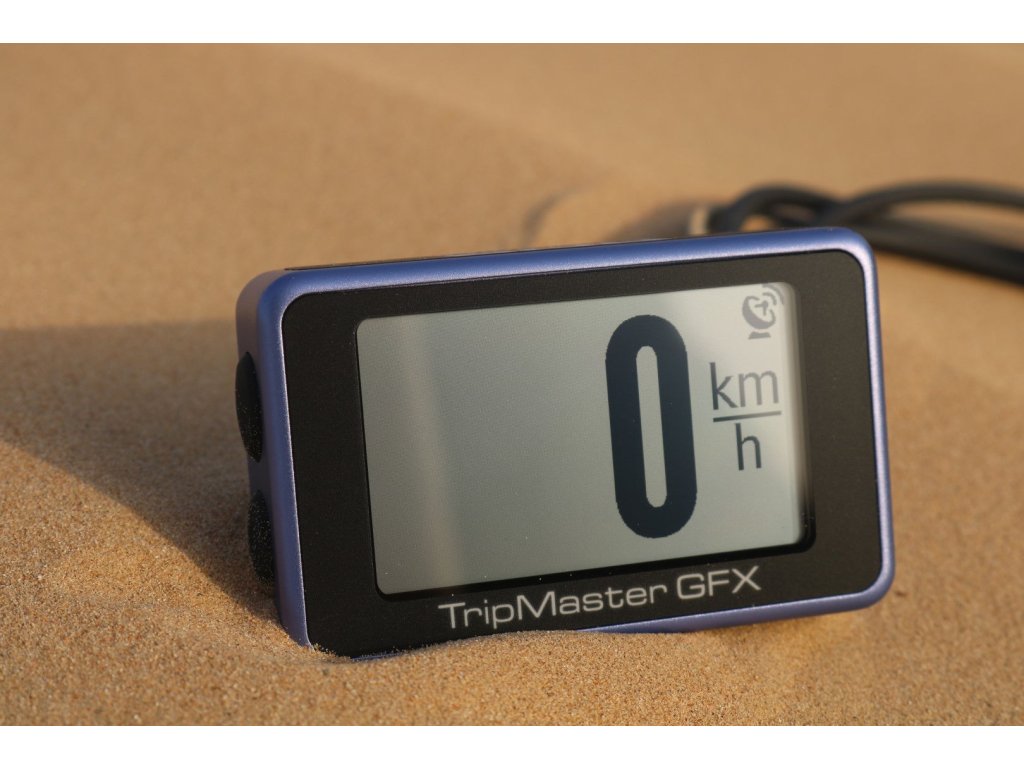

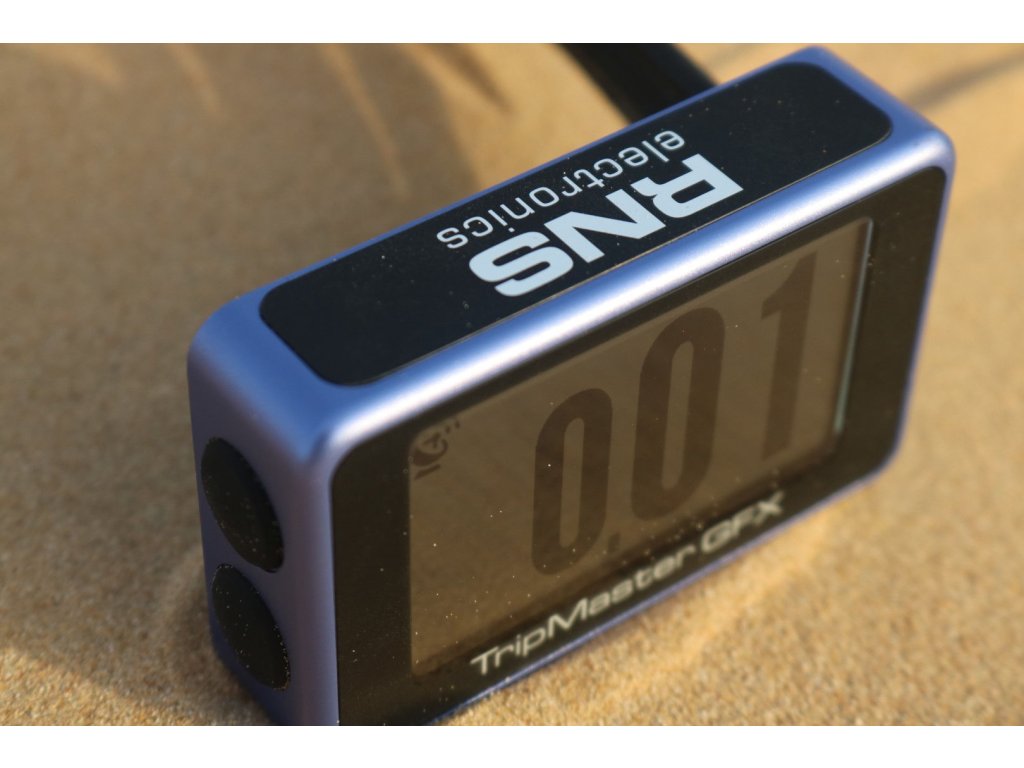

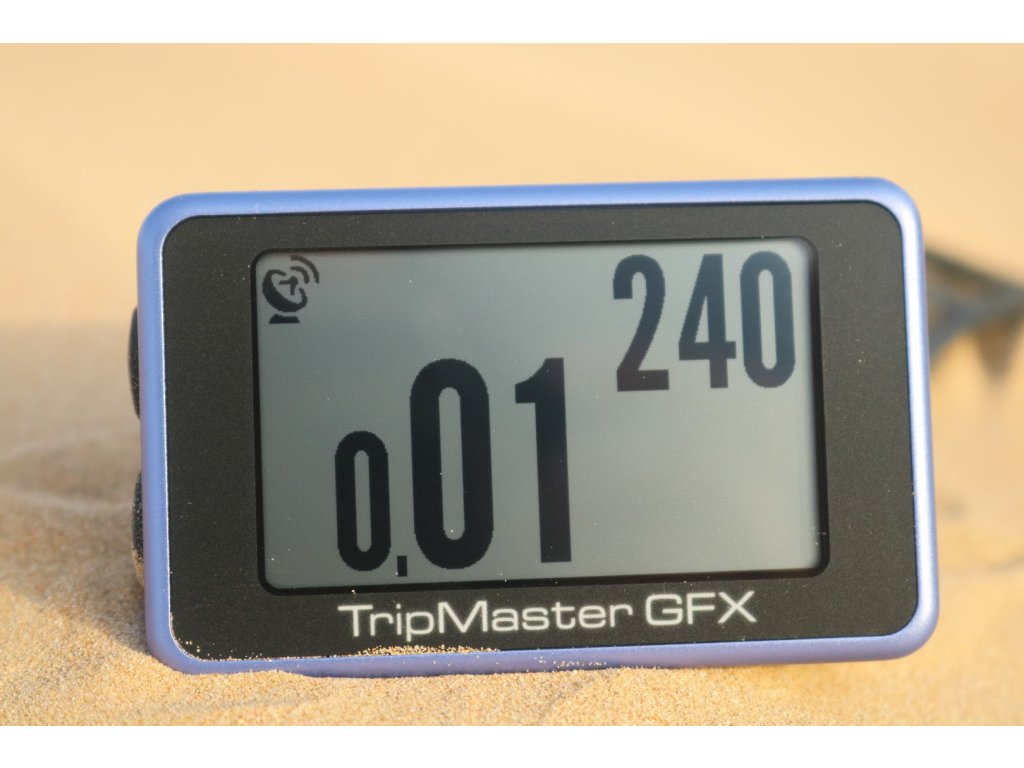

TripMaster GFX v2 Pro

NOTE: this "Pro" version of the GFX v2 features an internal built-in GPS antenna and receiver.

Although this device is compliant with the rules and regulations of many events, including FIM Cross-Country-Ralleis World Championship rounds, please check beforehand with your event organiser to ensure that you are allowed to use this GPS equipped device!

Hardware:

• High contrast transflective graphics LCD
• 2.7” diagonal
• 400x240 pixels, 172ppi
• LED backlight
• 180° viewing angle in X+Y axis
• Perfect readability under bright sunlight and dust
• CNC machined and anodised aluminium casing
• Internal GPS antenna + receiver
• 2 click-feedback rubber buttons on the left side for easy pressing even when wearing gloves
• Matte framed lens to limit glare
• Internal Lithium-Polymer self-charging backup battery
• 4 colour-coded cables with M8 connectors
• Water- and dustproof design
• Smaller footprint than the traditional TripMaster XL4
• Plug and Play with old cables, accessories and mounting positions

Software:

• Wheel sensor + internal GPS compatibility
• Wheel Size adjustable in millimetres
• Self-calibrating wheel size
• GPS compensation factor adjustable between -10% and +10%
• Numerous modes individually configurable
• 2x trips from wheel and GPS viewable in 10m or 100m resolution
• 2x speed displays from wheel and GPS
• Statistics for maximum and average speeds
• CAP heading from GPS
• Atomic clock from GPS with UTC offset
• Stage moving timers
• Combined screens for Trip, Speed and CAP together
• Repeater function to show waypoint information, including arrow, from a connected Garmin GPS device (cable sold separately)

• Intuitive settings menu accessible from any mode
• Transition pages with symbols and icons when switching between modes
• Lifetime and resettable oil odometers
• Invertible LCD image with dim backlight for pleasant reading in the dark
• Software updateable via USB

 Included:

• Stainless-Steel Front wheel sensor (M8 screw type)
• Neodymium Magnet
• Power lead
• Mounting parts: grommets, spacers and nuts

Dimensions:

• 84mm x 52mm x 22mm (WxHxD)
• 250g
